R1000 Twin Batch Treater

  • R1000twin

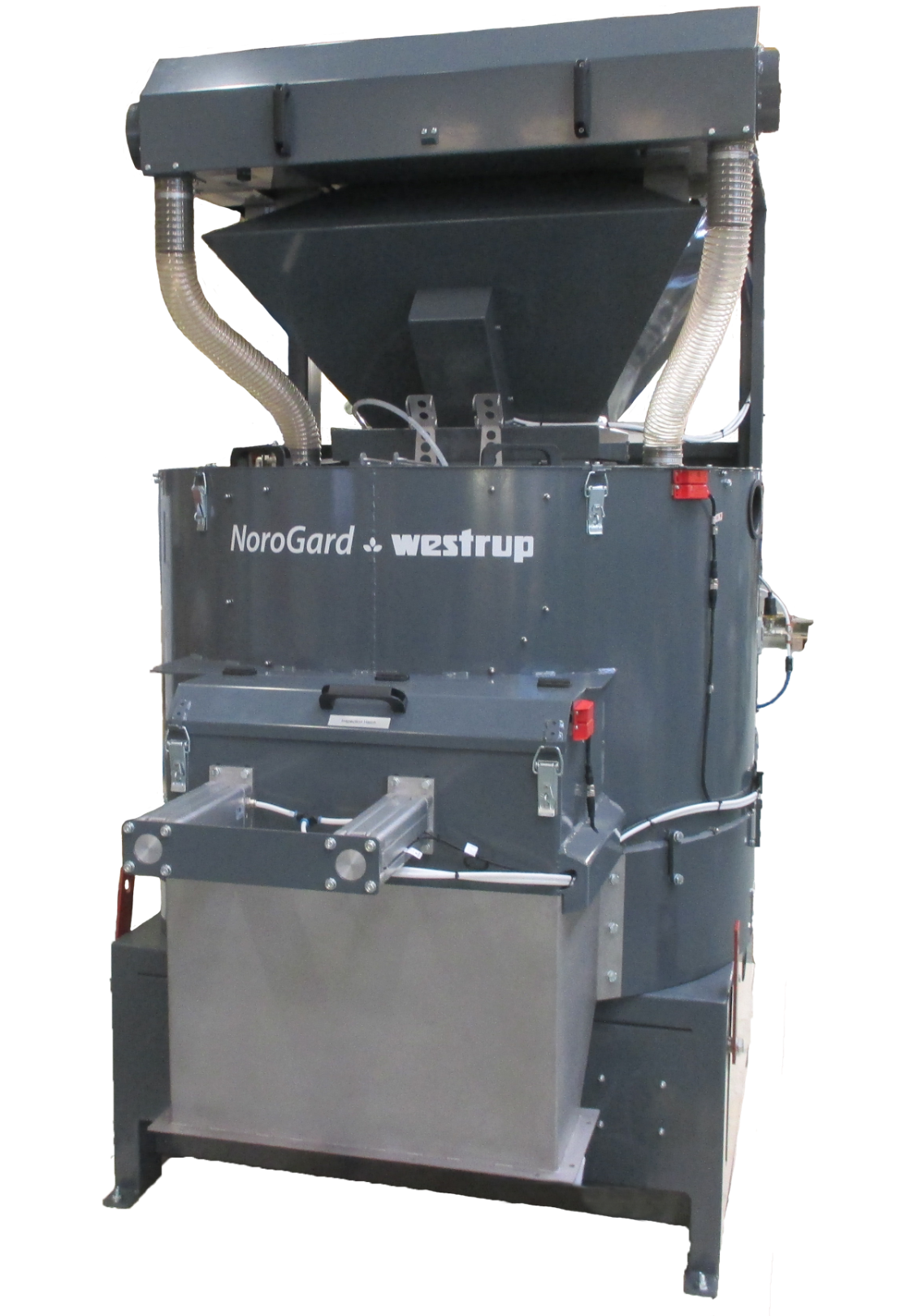

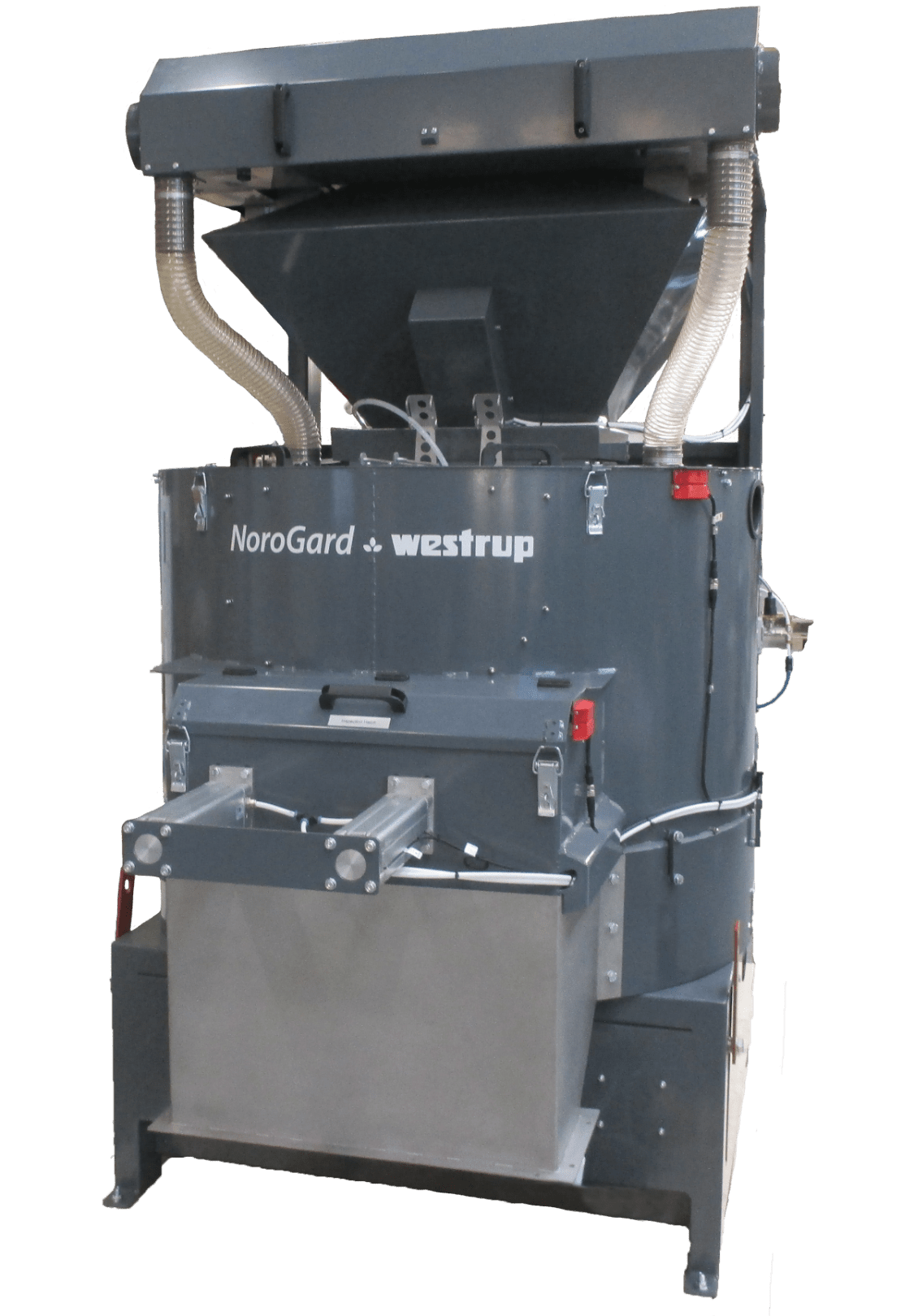

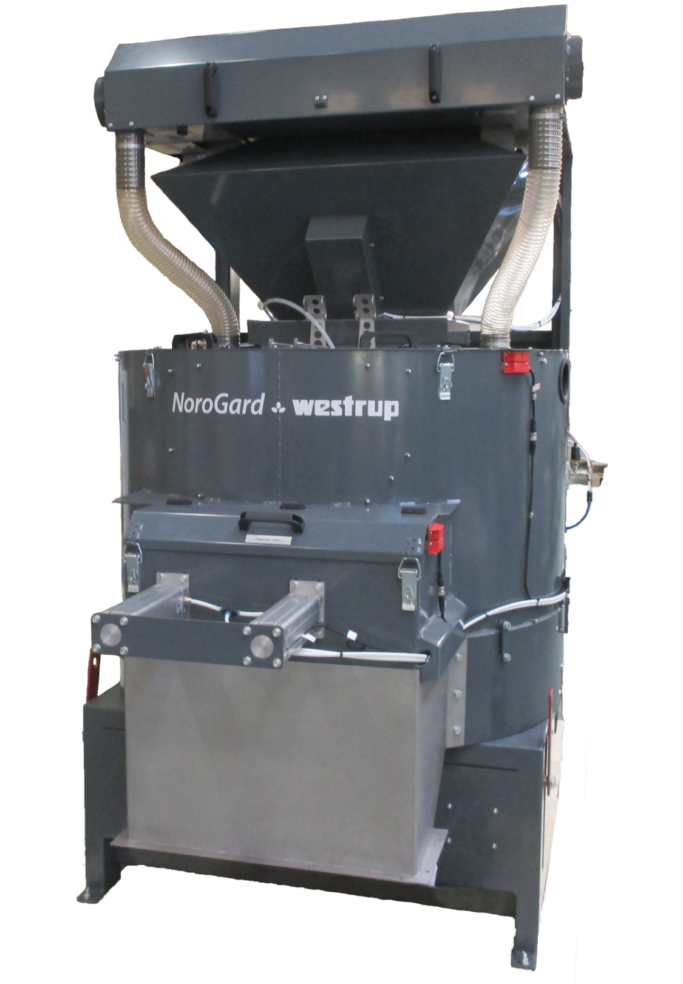

The NoroGard R1000 Batch Treater Twin is designed for complex treatments with a coating capacity of 60 tons/hour. The seed treater comes with a range of customization options to make sure it fits your pelletizing and coating needs. The R1000 Twin provides seed treatment within a closed system with all vital parts easily accessible for cleaning and service, making it the obvious choice for quality treatment of each seed for good economy.

Designed for complex treatments to meet high demands regarding application quality, reliability, operator safety and economy. Equipped to meet your needs for dressing, incrustation, coating and pelleting of seeds with diameter minimum 2 mm. Easy operated and controlled with an automatic PLC system.

R1000 Twin has a sophisticated supervision system with a larger size touch screen. With NoroGard ULD Control system you get an automatic calibration of dosage rates for both liquids and powders, and a continuous control of dosage rates.

Click here for more information

Product Resources

Manuals, Parts Lists, and Brochures

Download the Brochure

Specifications

Power Requirement 70 kW
Compressed Air (at 5,5 bar) 200 l/min
Air Extraction 1000 m3/h
Capacity (batch volume) 10-200 liters
Capacity (wheat, 15 sec mixing) 60 ton/hour
Weight 2550 kg
Width 2040 mm
Depth 1461 mm
Height 2600 mm
Warranties Orgalime S2012
